Retro ZX Spectrum Lives a Spartan Existence

FPGAs (like Xilinx’s Spartan series) are great building blocks. They often remind us of the 100-in-1 electronic kits we used to get as kids. Lots of components you can mix and match to make nearly anything. However, like a bare microcontroller, they usually don’t have much in the way of peripheral devices. So the secret sauce is what components you can surround the chip with.

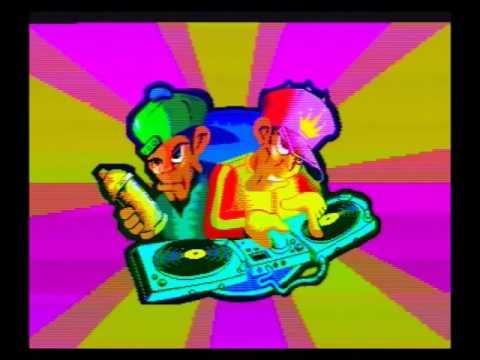

If you are interested in retro computing, you ought to have a look at the ZX-Uno board. It hosts a Spartan 6 FPGA. They are for sale, but the design is open source and all the info is available if you prefer to roll your own or make modifications. You can see a video of the board in action, below (as explained in the video, the color issues are due to the capture card trying to deal with the non-standard sync rate).

Here are the key specifications:

FPGA Xilinx Spartan XC6SLX9-2TQG144C
Static Memory 512Kb, AS7C34096A-10TIN
50MHz Oscillator
Video output (composite)
PS/2 keyboard
Stereo audio jack
EAR jack connector (for reading cassette tapes)
Connectors for JTAG and RGB
Slot for SD Cards
Expansion port with 3 male pin strips
Micro-USB power connector
PCB Size: 86×56 mm. (Compatible with Raspberry Pi cases)

In a recent post, we mentioned an Amstrad clone, and at least one commenter pointed out that the ZX Spectrum was more popular. However, with this board, you don’t have to choose. In the downloads section, there are bit streams (FPGA configurations) to let the board emulate several different computers, including several Commodore systems, some Atari systems, the BBC Micro, the ZX81, and more. Of course, the ZX Spectrum is at the top of the list.

If you decide to try one of these, you might need to brush up on your Spanish or keep a link to Google Translate handy. A lot of the surrounding community seems to be Spanish-speaking. But it looks like a nice board for doing any sort of computer platform you could cram into an FPGA.

If you want to learn ZX Spectrum assembly language (and who doesn’t?), we covered a good tutorial awhile back. It might take a USB to PS/2 adapter, but we’d love to see this board used with a keyboard like this one.
