Digital Forensics Investigation using OS Forensics (Part1)

About OSForensics

OSForensics from PassMark Software is a digital computer forensic application which lets you extract and analyse digital data evidence efficiently and with ease. It discovers, identifies and manages ie uncovers everything hidden inside your computer systems and digital storage devices.

OSForensics ia a self-capable and standalone toolkit which has almost all the digital forensics capabilities including Data acquisition , extraction, analysis, email analysis, data imaging, image restoration and much more.

In this article we will cover all the major capabilities of OSForensics for digital forensics investigations.

Features of OS Forensics

• Discover Forensic Evidence Faster
• Find files faster, search by filename, size and time
• Search within file contents using the Zoom search engine
• Search through email archives from Outlook, ThunderBird, Mozilla and more
• Recover and searchdeleted files
• Uncover recent activity of website visits, downloads and logins
• Collect detailed system information
• Password recovery from web browsers, decryption of office documents
• Discover and reveal hidden areas in your hard disk
• Browse Volume Shadow copies to see past versions of files
• Identify Suspicious Files and Activity
• Verify and match files with MD5, SHA-1 and SHA-256 hashes
• Find misnamed files where the contents don’t match their extension
• Create and compare drive signatures to identify differences
• Timeline viewer provides a visual representation of system activity over time
• File viewer that can display streams, hex, text, images and meta data
• Email viewer that can display messages directly from the archive
• Registry viewer to allow easy access to Windows registry hive files
• File system browser for explorer-like navigation of supported file systems on physical drives, volumes and images
• Raw disk viewer to navigate and search through the raw disk bytes on physical drives, volumes and images
• Web browser to browse and capture online content for offline evidence management
• Thumb Cache viewer to browse the Windows thumbnail cache database for evidence of images/files that may have once been in the system
• SQLite database browser to view the and analyze the contents of SQLite database files
• ESEDB viewer to view and analyze the contents of ESE DB (.edb) database files, a common storage format used by various Microsoft applications
• Prefetch viewer to identify the time and frequency of applications that been running on the system, and thus recorded by the O/S’s Prefetcher

First Download OS Forensic  from https://www.osforensics.com/download.html and install in your pc.

Undiscovering OSForensics

To start with open OSForensics , we can see the OSForensics window open.

On the left hand side are the main options/ capabilities of OSforensic we will be talking about in details.

Please note that the start option highlights the main tools. Features of OFS which are widely used the same options can also be accessed through the tabs on the left pane.

For this article we will be working on NPFJeane case it is a demo case of which we will be doing forensics investigation. (This will be our evidence, we can do the same with any other data or computer disk)

The first option is Manage Case:

Whatever task/operation we want to perform in OSF, it is always advisable to create a case for that. Creating a case is also helpful to distinguish multiple processes / operations from one another and also act as a container of the work done which is also helpful in future reference.

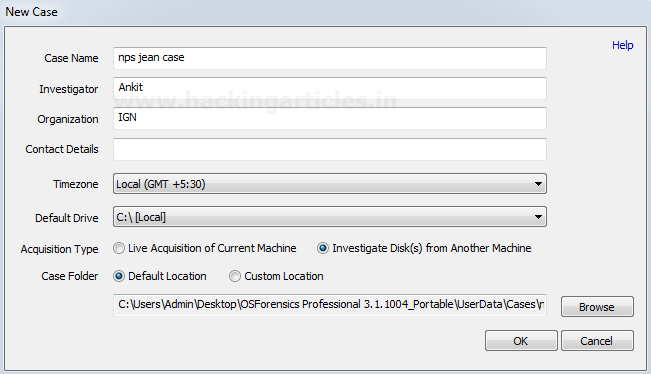

To create a new case click on Create Case icon in start option or new case button in Manage case option and provide all the relevant details related to the case. Also note the location where we want to save the case.

Enter all the details and click on OK, we can see the case getting listed. If are working on more than one case at a time or we have multiple cases listed on OSF we need to select which case we need to work on. To do this select the case and click on load case, we will see a green check mark against the case which is presently loaded.

Similarly we can delete any case or import a case from any other OSF.

File Search

This option is used to search any particular file name, to search any particular file we can simply give the file name and browse for the drive, directory or any other location we need to search.

There is a preset option we can use this to select any particular file category

Also we can filter/refine the file search by changing the configuration settings, to do so click on the config button and change the settings as required.

Click on OK and in file search window enter the filename and click on search, Depending on the data volume The search will take a little time and will display the results . In our search we have searched the term “Resume” and this will show all the files who have the term “resume” in their name.

We can also view the searched files in thumbnails.

And timeline view. Timeline view will show a bar graph representation of that keyword on the basis of time and keyword count.

This ends the file search.

Create Index / Indexing

Index search is a more deep and refined search and also very vital for forensic investigations.

The most intuitive method for keyword searching is to provide a single keyword, and search for occurrence of that keyword within our data/evidence. To achieve this objective the best way is to create an index of the drive/directory within which we need to perform a search. An index is simply a list of offsets for occurrences of required keywords. Indexing allows to search within the contents of many files /drive/directory at once.

In OSF we can either indexed on the predefined files types

Or can create a customised template

We can select the extensions we need to search on, skip any file or folder by specifying its name or by limiting the file size. Customize the template and click OK

Customize the template and click OK. Click on next and proceed to Step 2. Here we need to select the drive or directory we want to index and select the indexing option from the drop down as shown below and click on OK.

The drive or folder selected will get listed, (we can add multiple drives/directories) for indexing.

Click on next and proceed to step 3

Now we will get a view of the drives we are indexing along with the extensions that will be indexed. If everything is as per requirement click “Start Indexing” else click the “Back” button to make any changes.

Indexing will start and depending on the data it will take some time for the indexing to complete.

Initially Pre scan is performed and immediately after Pre-Scan indexing will start automatically

Once indexing is complete, we will get a popup with indexing finished message.

We can also check index log to check the status /result of indexing and any error that the system may have occur during indexing.

Search Index

Above we have indexed the drive for keyword searching, now we will actually search for the keywords in the indexed drive/directory.

To start with click on search index.

We can see all the drive we have indexed in a drop down

We can either enter the keywords we want to search one by one in “Enter Search Word” tab click on search and will get the result on the screen.  WE have searched for the keyword “Ethical”, in a directory named “Workspace” and can see all the files containing the word Ethical.

Also we can upload the keywords we want to search in a text file and upload it, This option is suitable if we want to search multiple keywords at same time.

We have created a text file named key.txt with three keywords and saved it on desktop.

To upload this file click on “Use Word List File” and upload the above referred file

We can see the result of the keywords in the screen along with the total number of hits of each keyword in the indexed directory, under history Tab.

Double click on the keyword in the list and all the files containing that particular keyword will get listed under file tab.

This ends the Indexing and search under indexing.

For more on other features /functionalities on OS Forensics wait for the next article.

Author: Ankit Gupta, the author and co-founder of this website, an ethical hacker, forensics investigator , penetration testing researcher and telecom expert. He has found his deepest passion to be around the world of telecom, cyber security and digital forensics. Contact Here
